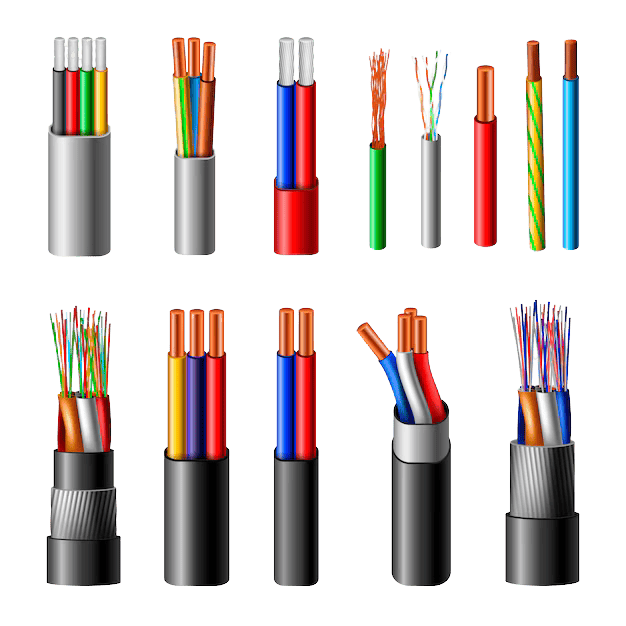

Flexible Multicore Cables
Multi tasking Multicore Cables
Application
These multi core flexible cables are used for wiring in control panels, machines and various electrical installations in dry and damp interiors especially under typical-indusiggs environmental conditions.
Construction
Conductor : 99.97 % pure electrolyte grade bare flexible bunched copper.
Insulation :PVC with highinsulation resistance value.
Outer sheath : Flexible PVC/rubber.
Colour : PVC Black or Any other Color on specific
request can also be supplied.
Packing : Coils of 90 meters, 100 meters, drum length, or as per specific requirements.
Features
- 99.97% pure EC grade bare copper conductors which gives low conductor resistance.
- Longer Flexible life of cable.
- Excellent resistant to heat, oil, abrasion, cuts, chemicals etc.
- Excellent mechanical & electrical properties.
- Flexible conductor for high bending radius.
- Generally confirms to IEC 60227, BS 6500, UL-83, 1S694 & DIN UDR 0281 & other international standards.
- Nominal Voltage upto 1100 V
- Temperature from -15°C to 70°C.
Technical Specifications
| Size in sq. mm. | Max DC Resistance @ 20°C (Ω/km) | Current Rating in Amps. | Approximate overall diameter of cable in mm | ||
|---|---|---|---|---|---|
| 2 core | 3 core | 4 core | |||
| 0.50 | 39.00 | 4 | 6.20 | 6.60 | 7.20 |
| 0.75 | 26.00 | 7 | 6.80 | 7.20 | 7.90 |
| 1.00 | 19.50 | 11 | 7.00 | 7.50 | 8.10 |
| 1.50 | 13.30 | 14 | 7.60 | 8.10 | 9.00 |
| 2.50 | 7.98 | 19 | 9.00 | 9.60 | 10.50 |
| 4.00 | 4.95 | 26 | 10.60 | 11.30 | 12.40 |
| 6.00 | 3.30 | 35 | 12.60 | 13.40 | 15.20 |
| 10.00 | 1.91 | 45 | 16.00 | 17.00 | 18.80 |
| 16.00 | 1.21 | 60 | 18.80 | 20.10 | 22.20 |
| 25.00 | 0.78 | 80 | 24.00 | 25.60 | 28.20 |
