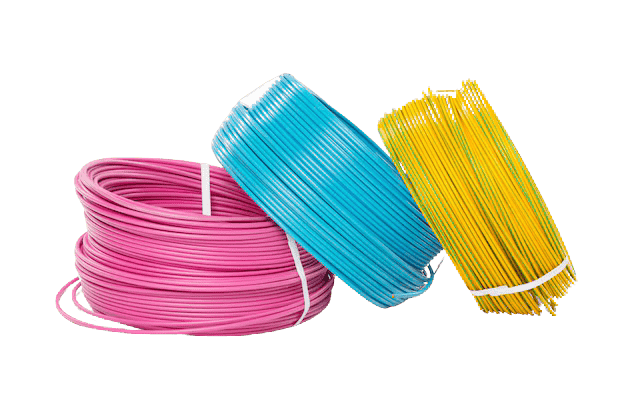

House Wires / Building Wires
Make your Sweet Home, Safe Home
Application
These single core flexible cables are used for wiring in control panels, machines and various electrical installations in small, medium and large industires.
Construction
Conductor : 99.97 % pure electrolyte grade bare flexible bunched copper.
Insulation : PVC with high insulation resistence value.Other Insulation materials are FR, HR,FRLS, ZHFR.
Colour : Red, Yellow, Blue, Black, Grey, Green, specific colours on requirement.
Packing : Coils of 90 meters packed in printed /
corrugated attractive box (upto 4sq mm.).
Master packing done in corrugated box or as
per specific requirement.
Features
- 99.97 pure EC grade copper which gives high conductivity & low electricity bills.
- Excellentinsulation resistance & di-electrical strength.
- High Flame retardant properties.
- Longer Flexible life.
- Excellentinsulation resistance & di-electric strength.
- Lower conductor resistance.
- Nominal Voltage upto 1100 V.
- emperature fom-15°C1070°C.
Technical Specifications
| Size (sq. mm.) | Nominal Conductor Dia. (mm) | Approx. Diameter (mm) | Resistance @ 20°C (Ω/km) | Max DC Rating (Amps) | Packing Coils |
|---|---|---|---|---|---|
| 1.00 | 0.7 | 2.8 | 18.1 | 11 | 24 |
| 1.50 | 0.7 | 3.2 | 12.1 | 13 | 20 |
| 2.50 | 0.8 | 3.6 | 7.41 | 18 | 12 |
| 4.00 | 0.8 | 4.5 | 4.61 | 25 | 8 |
| 6.00 | 0.8 | 6.4 | 3.30 | 35 | 1 |
| 10.00 | 0.8 | 7.5 | 1.91 | 45 | 1 |
| 16.00 | 0.8 | 9.0 | 1.21 | 60 | 1 |
