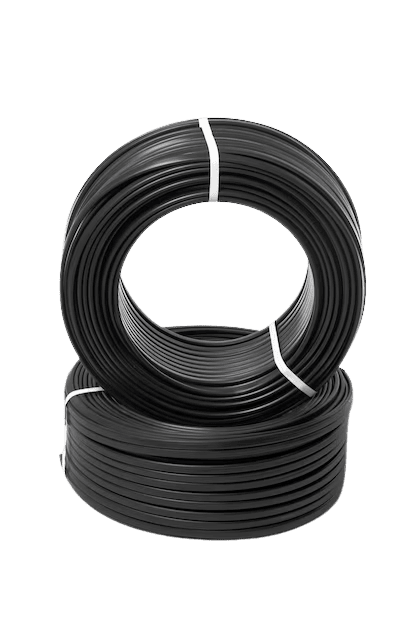

Solar PV Cables
The next generation Cables
Application
Solar cable is the interconnection cable used in photovoltaicpower generation. A solar cable interconnects solar panelsand other electrical components of a photovoltaic system.Solar cables are designed to be UV resistant and weather
resistant. It can be used within a large temperature range andare generally laid outside.
Construction
Conductor : Annealed Electro-Tinned/bare fine copper bunched to give high conductivity as per IEC 60228/VDE2095.
insulaion : Cross linked Polyolefin Co-Polymer (XLPO) / Cross-linked polyethylene (XLPE) with excellent IN and weather resistant properties.
Sheathing : Crosslinked Polyolefin Co-Polymer (XLPO).
Colour : RED or BLACK or any other customized requirement.
Packaging : Incoils of 100 mtrs, 300 mtrs or drum length. Or as per customized requirement
Features
- Operating Temperature from -40°C to 90°C.
- Better UV & Ozone resistance and improved weather resistance in adverse conditions.
- Improved Oil & Chemical resistance, improved crack resistance.
- Improved Mechanical properties of the cables in elevated temperature conditions
- Improved Flammability properties,
- Fire performance : IEC 60332-1-2
- Smoke emission : IEC 61034-2/ EN 50268-2
- Halogen Free: IEC 60754-1 (HCL Content Co. 5%)
- Maximum Tp perature at conductor 120°C
- Voltage Rating : U0/U = 600/1000 VAC, 1800 VDC
- Test Voltage : 6.5Kv 50Hz 15 Kv Dc for 5 Min
- Bending Radius : 4 x 0 ( Cablee OD )
Technical Specifications
| Cable Size (mm²) | Insulation Thickness (mm) | Conductor Insulation (mm) | Outer Diameter (mm) | Weight (kg/km) |
|---|---|---|---|---|
| 1.5 | 0.5 | 1.0 | 4.6 | 24 |
| 2.5 | 0.5 | 1.0 | 5.0 | 33 |
| 4 | 1.0 | 1.0 | 6.1 | 44 |
| 6 | 1.0 | 1.0 | 7.1 | 57 |
| 10 | 1.2 | 1.2 | 8.0 | 79 |
| 16 | 1.2 | 1.2 | 9.1 | 107 |
| 25 | 1.3 | 1.3 | 10.5 | 142 |
